Freeze-thaw cycles in Levis hit retaining structures harder than most contractors expect. The St. Lawrence valley sees over 100 cycles per winter, and that temperature swing works its way into every anchor head and tendon. When you pair that with the stiff Champlain Sea clay and underlying shale bedrock, anchor design stops being a catalogue detail and becomes a site-specific exercise. Our lab runs pull-out correlation tests on recovered core and monitors grout curing under temperature profiles that match the south shore's winter conditions. For deep excavations near the river where soil layers transition sharply from till to shale, we often integrate findings from grain-size analysis to confirm bond zone characteristics before finalizing the free length calculation.
An anchor in Utica Shale is only as reliable as the grout-to-rock bond. We test what we design.
Local ground factors

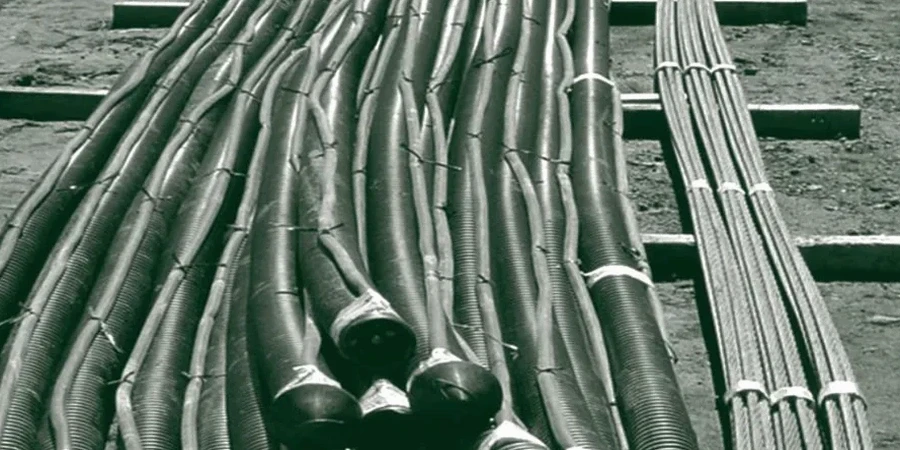

The risk picture changes completely between active and passive systems, and a lot of it comes down to how the anchor interacts with Levis' stiff clay over time. Active anchors are post-tensioned immediately after grout reaches strength, locking in a known force and limiting wall deflection before backfill placement. Passive anchors, by contrast, rely on ground movement to mobilize resistance. In a Champlain Sea clay environment, that delayed mobilization can translate into more lateral deformation than the project tolerates. Worse, if the anchor is placed in a zone where the shale contact is dipping toward the excavation, passive bar anchors can see uneven load distribution that standard design software doesn't flag. Our lab quantifies this through staged triaxial testing at confining pressures matching the embedment depth, feeding real modulus values into the anchor design rather than conservative assumptions that drive up cost without adding safety.
Frequently asked questions
How much does anchor design and testing cost for a typical Levis retaining wall project?
For most residential and light commercial retaining walls on the south shore, the combined design, lab testing, and field proof-testing package runs between CA$1,600 and CA$5,890. The range depends on whether you need active or passive anchors, the number of verification tests required, and how many lab tests we run on the bond-zone material. A temporary shoring job with two anchors and basic shear-box data sits at the lower end; a permanent tied-back wall with five anchors, corrosion monitoring, and full triaxial testing moves toward the upper end.
What is the difference between active and passive ground anchors?
Active anchors are stressed with a hydraulic jack after grouting and before the wall is backfilled; they actively apply a known force to the structure and control movement from day one. Passive anchors are grouted in place and only develop resistance as the ground deforms. In Levis' stiff clays, active anchors typically give you tighter deflection control, while passive systems are practical for rock-cut conditions where deformation is minimal and access for a stressing jack is limited.
Which standard governs permanent anchor design in Canada?
Permanent anchor design follows CSA A23.3 Annex D, with additional guidance from the PTI DC35.1 recommendations and the Canadian Highway Bridge Design Code (CSA-S6) when anchors are part of transportation infrastructure. Corrosion protection requirements depend on the design life: temporary anchors need single protection, while permanent anchors require double protection with factory-grouted encapsulation and corrugated sheathing.
How do you verify anchor capacity in Levis' shale bedrock?
We run a combination of lab and field tests. In the lab, we conduct direct shear tests on the shale interface at the bond-zone elevation to establish the rock-grout friction angle. In the field, every anchor undergoes a proof test where we apply 133% of the design load and hold it for 60 minutes while recording creep movement. For critical permanent anchors, we add a creep test with incremental loading to confirm the anchor is not seated in fractured or softened shale.
